Dishwasher installation and access guide: measure the whole route before buying

This guide deliberately covers access and installation rather than capacity. For place-setting terminology, use our dishwasher place-settings guide. For a reusable room-measuring method, see how to measure before buying.

Create two measurement records

The delivery record follows the appliance from vehicle to kitchen. Note gates, communal doors, corridors, lifts, turns, stairs, internal doors and the approach to the final opening. The installation record covers the cabinet void, adjacent doors, worktop, plinth, finished floor and services.

Record width, height and depth in millimetres, with a labelled photograph and the date. Measure each critical point at least twice. Walls, floors and cabinet sides may not be parallel, so take readings at the top, middle and bottom rather than relying on one convenient point.

Measure the packaged delivery route

Retail product dimensions often describe the unpacked appliance. Delivery crews may need to keep protective packaging on until reaching the room. Ask for packaged width, depth, height and weight, then identify the narrowest fixed obstruction.

Measure doors with handles, stops and closers included. A doorway that is wide enough straight-on may fail when the appliance must turn immediately into a corridor. Sketch corners and landing shapes, and check lift depth as well as its door. Our delivery access checklist explains how to record turns and restrictions for the retailer.

Do not treat a nominal width as the opening size

Full-size and slimline labels are categories, not installation drawings. Use the manufacturer’s current technical sheet for the exact model. Compare the body, projecting controls, feet, hoses and required clearances against the real opening.

Leave tolerance for installation and removal. A tight opening can scrape cabinets, trap vibration or prevent levelling. Integrated appliances may require defined ventilation gaps and fixing positions. Never cut cabinetry from a search-result snippet or retailer filter value.

Check height at the finished floor

Dishwasher feet usually allow adjustment, but only within a stated range. Measure from the finished floor beneath the appliance—not from a lower subfloor at the front—to the underside of the worktop. Tiles or boards added after the kitchen was fitted can create a lip that traps the old machine or blocks the new one.

Check whether the worktop sags, the floor rises towards the back or pipes cross the opening. If the old appliance is still present, its fit is useful evidence but not proof that a different door, feet or hose layout will fit.

Depth includes services

An appliance body that matches cabinet depth can still project when a plug, valve, waste pipe or hose sits directly behind it. Technical drawings may reserve a service zone or require connections in an adjacent cupboard. Photograph the full space after safely isolating and moving the old unit only if you are competent to do so.

Do not crush, kink or extend hoses casually to recover depth. Confirm permitted hose lengths, bend radii and extension kits with the manufacturer or installer. A projecting machine can obstruct adjacent drawers and change door clearance.

Plan water and waste connections

Identify a reachable cold-water isolation valve and a suitable waste connection. The installer needs to be able to turn off the supply, attach the inlet and route the drain without tension or sharp bends. Confirm whether a blanked waste spigot must be opened and whether an air gap or high loop is specified.

Old valves can seize or leak when disturbed. A standard installation service may refuse unsafe, inaccessible or non-compliant plumbing. Establish in writing whether valve replacement, drilling cabinet holes, hose extensions and leak repairs are excluded.

Power must remain safe and accessible

Check the manufacturer’s electrical requirements and the installer’s policy. Avoid placing a loose extension lead or multiway adaptor behind the machine. A socket may need to remain accessible in an adjacent unit rather than being trapped behind the appliance.

If a new circuit, socket or alteration is required, use a competent electrician and complete it before delivery. Water and electricity make improvisation especially poor. Never disconnect fixed wiring merely to make a purchase fit.

Door swing and working clearance

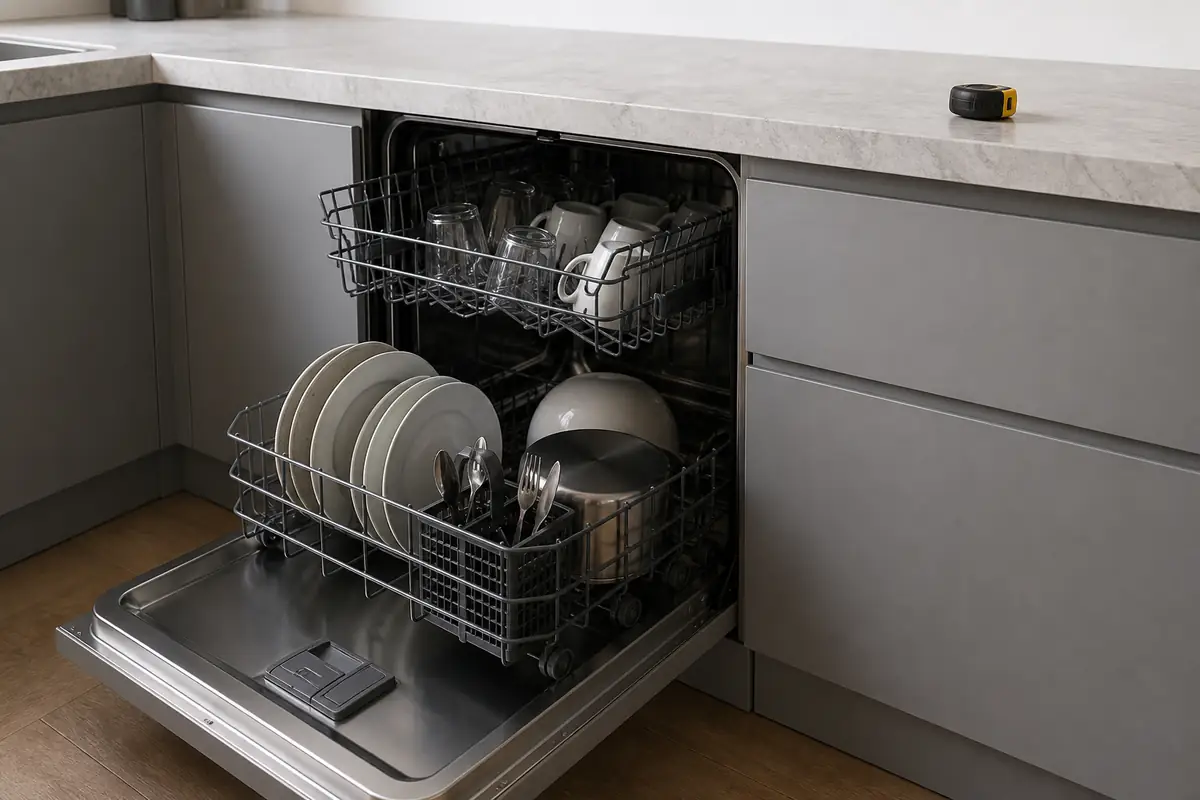

Measure the open appliance door from the cabinet line and check the lower rack can pull out without striking an island, table, radiator or opposite handle. Leave standing space for loading. A narrow galley can technically accept the body while making an open dishwasher block the whole route.

Check adjacent drawers and corner units in both directions. An integrated furniture panel may move differently from a freestanding door, particularly with sliding hinges. Plinth height and recess affect whether the panel clears the kickboard.

Integrated doors need exact compatibility

Fully integrated dishwashers hide behind a furniture panel, but panel dimensions, weight range, fixing template and hinge mechanism vary. Some installations use a fixed panel; others slide as the appliance opens. Do not assume the old panel and brackets transfer.

Obtain the model drawing and kitchen information. If the panel needs drilling or trimming, decide who accepts responsibility for that work. Confirm whether decorative handles, fixings and moisture protection are included.

Ventilation, levelling and leak protection

Follow the manufacturer’s specified clearances and moisture protection. Level the machine so racks travel correctly and the door seals as designed. After connection, a competent installer should inspect joints and perform the specified test rather than leaving a hidden slow leak.

Leak-protection features differ and do not remove the need for sound hoses, accessible isolation and prompt action. Keep the stop-valve location known to everyone in the home. Record the installation before replacing plinths.

Book the right delivery service

Read what “installation” actually includes. Some services connect only to existing suitable services and exclude carpentry, plumbing alterations, hardwiring, door-panel modification or stair access. Check old-appliance disconnection, removal and recycling separately.

Send access notes before delivery and keep written acceptance. If you are replacing an appliance, compare repairability and parts support in our appliance repairability guide before treating replacement as automatic.

Handover before the crew leaves

Confirm the appliance is level, the door and racks move freely, connections remain dry during the specified test and adjacent cabinets have not been damaged. Ask where the isolation valve is and retain transit parts, manuals and installation evidence. Photograph the finished hose and service arrangement where accessible.

Do not sign that an unchecked installation is satisfactory merely because the machine powers on. Record any damage, leak, unusual noise or missing service immediately and contact the responsible retailer or installer through the documented route.

Standard installation or pre-installation work?

If the old appliance is trapped

Finished flooring installed in front of a dishwasher can prevent removal even when the new model would fit the nominal opening. Check the floor level and adjustable-foot access before delivery. Do not force the machine against the worktop or pipes.

A competent installer may need the plinth removed, feet lowered or surrounding work assessed. Agree who will make good flooring or cabinetry and whether a failed-removal visit attracts a charge. The old machine’s presence is not proof of an unobstructed replacement route.

Balanced verdict

A successful dishwasher purchase is a small installation project, not just an appliance comparison. The exact technical drawing, packaged delivery route, three-dimensional opening, services and door movement need to agree.

Keep the measurement sheet, photographs and retailer promises with the order. If an appliance arrives faulty or materially different, use our faulty-goods guide. Browse Home & Kitchen for related planning guides.
